In modern manufacturing, precision tooling plays a vital role in producing plastic components that meet strict performance and consistency requirements. Among the many industrial applications of Injection Molding, products related to adhesive packaging and sealing systems are especially important because they must combine durability, dimensional accuracy, and reliable function. One such specialized tooling solution is the Custom injection mould For Plastic Sealant Cartridge Plunger, 16 Cavity Glass Glue Bottle End Cap mold, which is designed to support efficient mass production of plastic parts used in sealant cartridges and glass glue packaging systems.

This type of mold is not a simple standard tool. It is developed with careful attention to product structure, material behavior, cycle time, and production output. Since sealant cartridges, adhesive bottles, and related dispensing products are widely used in construction, household repair, automotive maintenance, and industrial assembly, the quality of the plastic parts inside these systems directly affects sealing performance, ease of use, and shelf stability. A custom injection mould for these components ensures that each part is molded according to exact design specifications and can be produced consistently over a large number of cycles.

Importance of Custom Mold Design

A custom mold is created to match the exact geometry and functional needs of a specific part. For a plastic sealant cartridge plunger, the mold must produce a component that fits tightly inside the cartridge body and works effectively with the sealant material. If the plunger is too loose, leakage or poor extrusion may occur. If it is too tight, the user may experience excessive resistance during application. Therefore, the mold must be engineered to achieve precise dimensions and surface quality.

Similarly, a 16 cavity glass glue bottle end cap mold is intended for high-volume production. A 16-cavity design means that sixteen identical parts can be produced in one molding cycle. This significantly improves productivity and reduces per-unit manufacturing cost. In industries where large quantities are required, multi-cavity molds are a practical and efficient solution. However, the design of such molds is more complex than single-cavity tools because all cavities must fill evenly, cool uniformly, and eject smoothly without deformation or variation.

Custom mold design also allows manufacturers to optimize the part for material usage, structural strength, and compatibility with automated assembly lines. Whether the part is a plunger or an end cap, the mold must support stable processing and long service life.

Structure of the Plastic Sealant Cartridge Plunger Mold

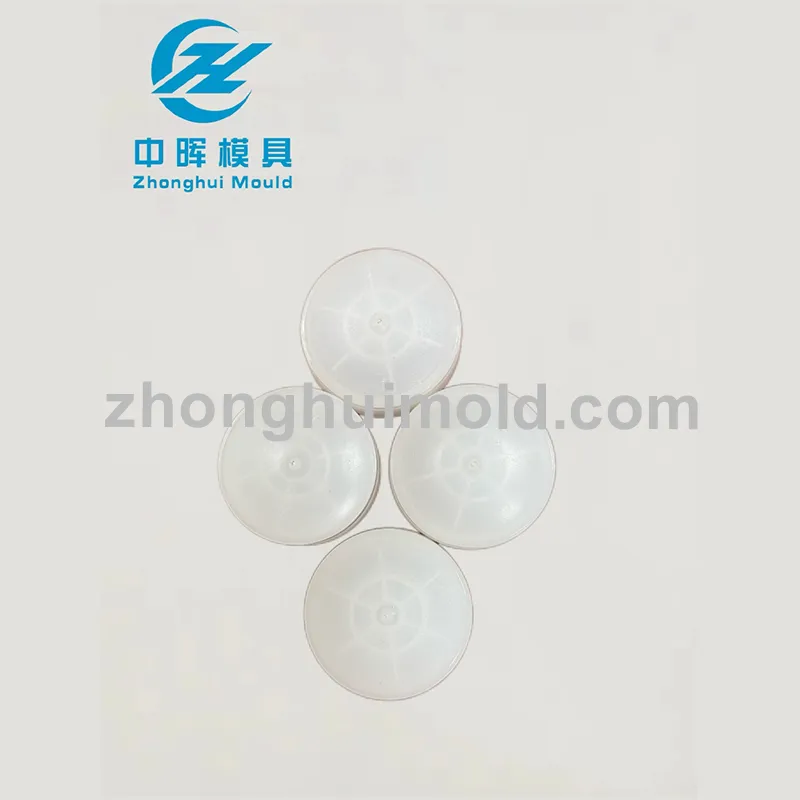

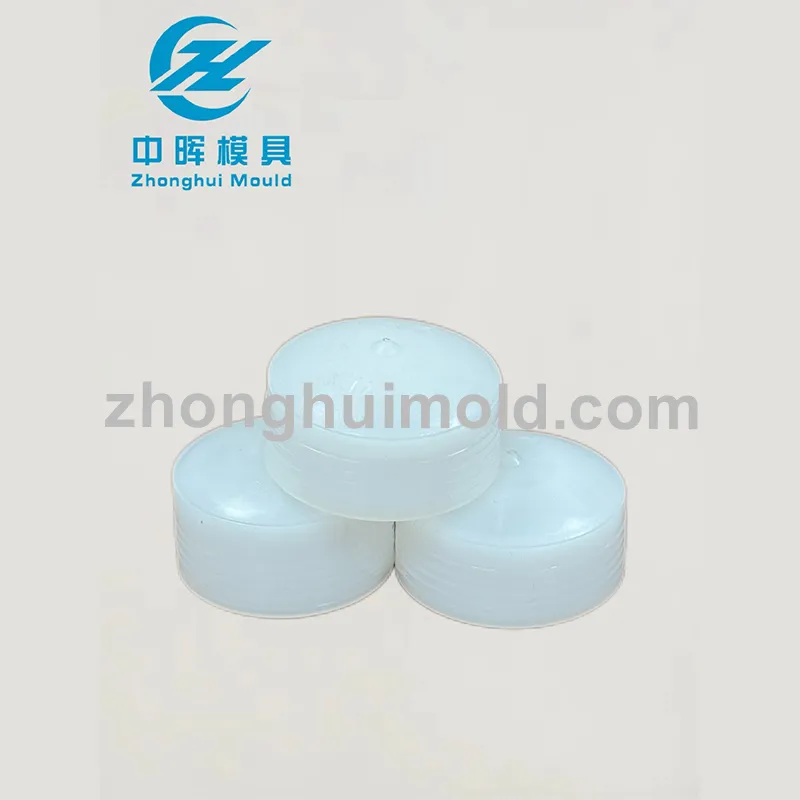

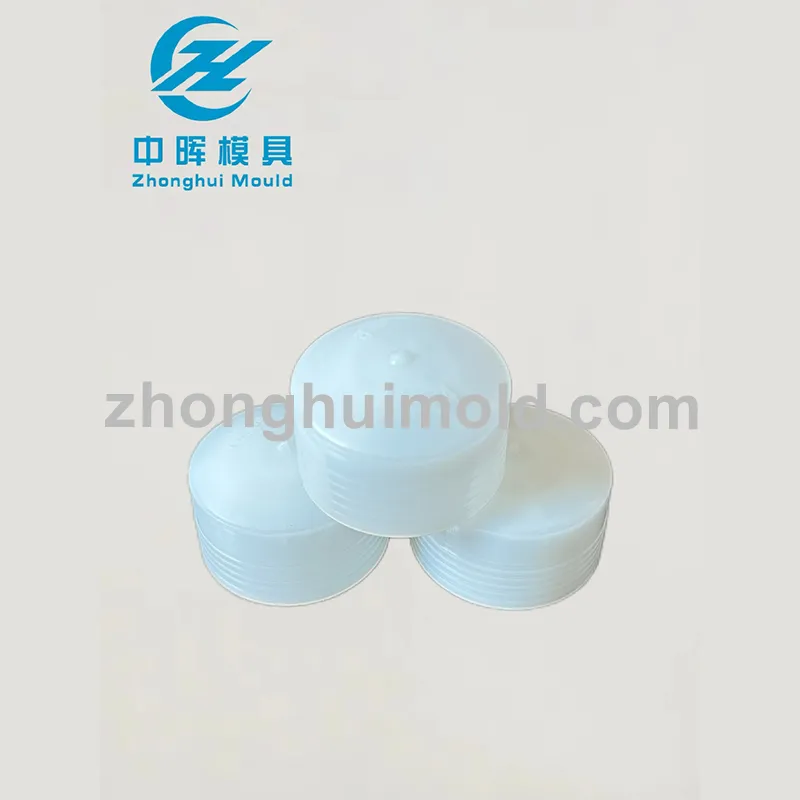

The plastic sealant cartridge plunger is a functional component that helps push sealant out of the cartridge while maintaining a proper seal between the plunger and the cartridge wall. Because of this, the molded part often includes rings, ribs, sealing lips, or other features that improve performance. The mold must reproduce these details with high accuracy.

To achieve this, the mold cavity is usually machined with precision equipment and finished carefully to ensure the correct texture and dimensional tolerance. The core and cavity surfaces may need special polishing, depending on the required appearance and friction properties. In some cases, the design may also require undercuts or flexible features, which can influence the selection of mold structure, such as using sliders, lifters, or collapsible cores.

Gate location is another important consideration. The gate must allow plastic to flow evenly into the cavity without creating weld lines or weak points in the finished plunger. Since the plunger is a functional part that interacts with pressure and sealing forces, even small defects can affect performance. Proper venting is also essential to avoid trapped air and burn marks.

Design Features of the 16 Cavity Glass Glue Bottle End Cap Mold

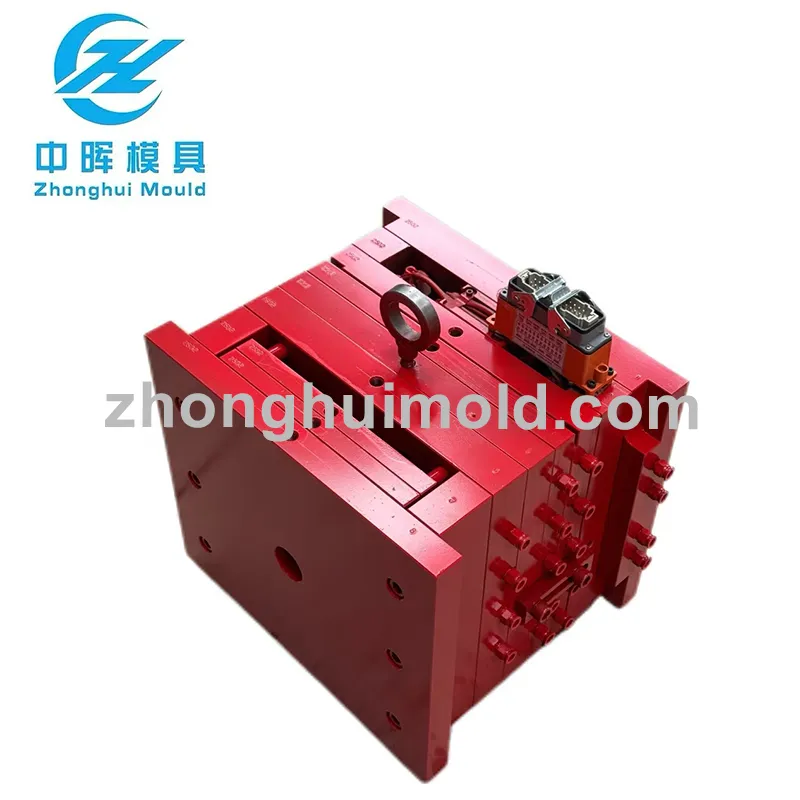

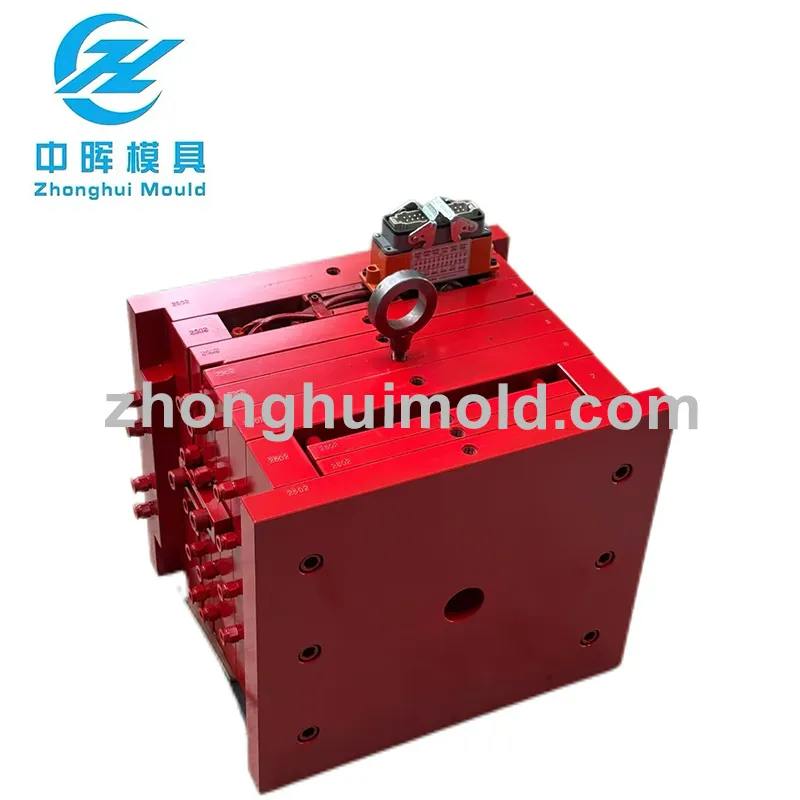

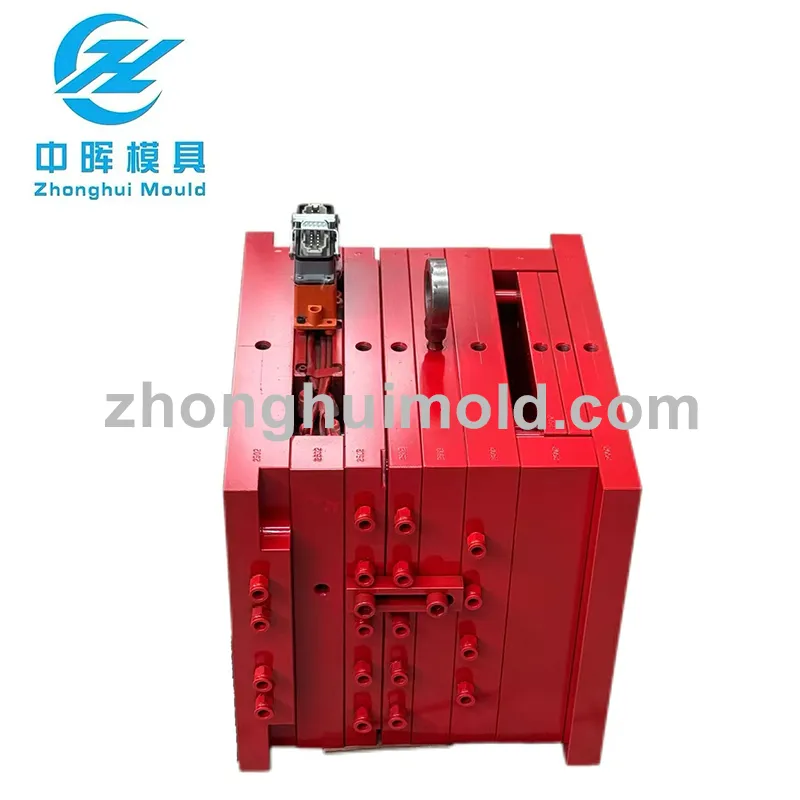

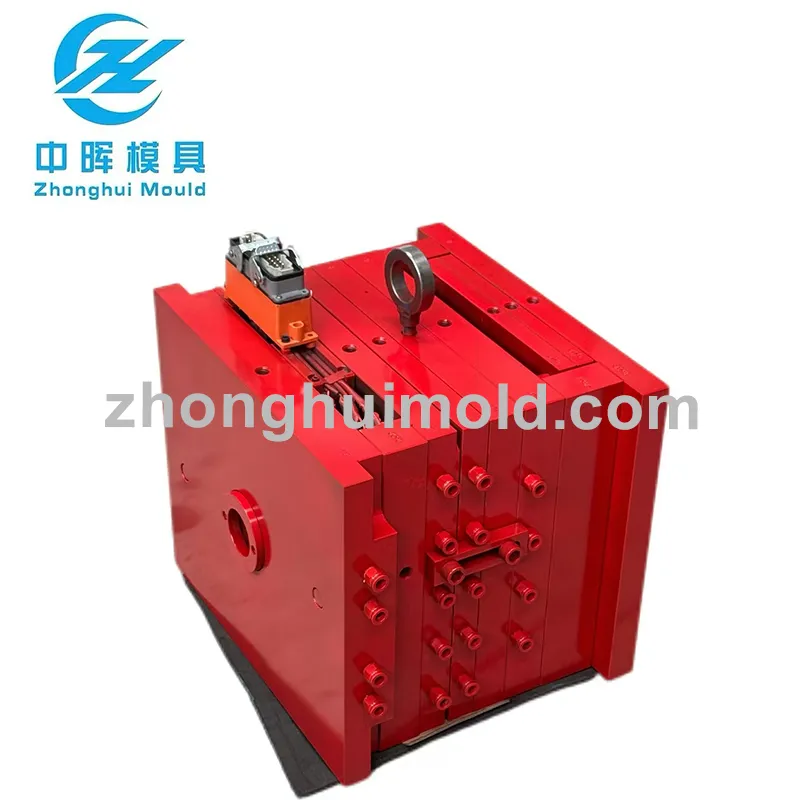

The 16 cavity glass glue bottle end cap mold is designed for efficient production of caps used in adhesive or glue packaging. These caps may serve several functions, such as closing the bottle, protecting the contents from air exposure, or providing a dispensing connection. Because end caps must often screw on securely or fit tightly onto bottle necks, dimensional consistency is extremely important.

In a 16-cavity mold, balance is a major concern. The runner system must distribute molten plastic equally to all sixteen cavities so that each part receives the same amount of material under similar pressure and temperature conditions. If the flow is uneven, some parts may be incomplete, warped, or heavier than others. For this reason, careful mold flow analysis is often performed before production begins.

Cooling channels are also a key part of the mold design. Since many cavities are operating at once, heat buildup can affect cycle time and part quality. Efficient cooling helps reduce shrinkage, prevent distortion, and shorten the time needed before ejection. Well-designed cooling not only improves product consistency but also enhances overall production efficiency.

Ejection systems in multi-cavity molds must be synchronized and reliable. The end cap should be released without damage or deformation. If the plastic part has thin walls or detailed threads, the ejection force must be carefully controlled to avoid stress marks or sticking.

Material Selection and Mold Durability

The choice of mold steel or other tooling material is essential for long-term performance. A custom injection mould used for sealant cartridge plungers and glass glue bottle end caps must withstand repeated heating, cooling, and mechanical stress over thousands or even millions of cycles. High-quality materials help ensure wear resistance, corrosion resistance, and dimensional stability.

Because some plastic resins may contain additives, pigments, or recycled content, the mold must also resist abrasion and chemical exposure. A durable mold reduces maintenance frequency and helps keep production stable. In high-volume manufacturing, downtime can be costly, so robust mold construction is an important investment.

Surface treatment may also be used to improve performance. Polishing, nitriding, coating, or other finishing processes can enhance mold life and part release characteristics. These treatments are especially useful when producing parts that must have clean edges, smooth surfaces, or complex details.

injection molding Process Considerations

Producing parts with a Custom Injection Mould For Plastic Sealant Cartridge Plunger, 16 Cavity Glass Glue Bottle End Cap Mold requires precise control of the injection molding process. Parameters such as melt temperature, injection pressure, holding pressure, cooling time, and mold temperature all affect the final result.

If the temperature is too low, the plastic may not fill the cavities completely. If it is too high, the material may degrade or flash may occur. Injection pressure must be balanced so that the plastic fills all cavities fully but does not create excessive stress in the mold. Holding pressure helps compensate for shrinkage during cooling, while cooling time ensures that parts are stable enough for ejection.

For multi-cavity production, process consistency is even more important. Small variations can become visible across sixteen cavities, leading to differences in weight, appearance, or fit. Therefore, stable machine settings and careful monitoring are required throughout production.

Advantages of Multi-Cavity Custom Molds

A 16 cavity mold offers several advantages in mass production. First, it increases output significantly compared with single-cavity tooling. This makes it suitable for products with high market demand. Second, it reduces the cost per part because more components are produced in each cycle. Third, it improves manufacturing efficiency by making better use of machine time and labor.

Custom molds also improve product performance by allowing the design to be tailored to the application. Instead of adapting a generic part, the mold can be built around the specific requirements of the packaging system. This can lead to better sealing, improved assembly, and a more professional final product.

Another advantage is design flexibility. Features such as logos, identification marks, thread details, or functional ribs can be incorporated directly into the mold. This supports branding, product differentiation, and usability without requiring extra manufacturing steps.

Quality Control and Testing

Before a custom injection mold enters full production, it must undergo testing and validation. Trial shots are used to inspect part dimensions, surface finish, filling behavior, and ejection performance. Any issue found during these trials can be corrected through mold adjustment or process optimization.

Quality control continues during production through dimensional inspection, visual checks, and functional testing. For a sealant cartridge plunger, the sealing performance and fit are especially important. For a glass glue bottle end cap, thread accuracy, closure tightness, and appearance must be verified. Consistent inspection helps maintain product quality and reduce scrap rates.

Applications in Industry

Plastic sealant cartridge plungers and glue bottle end caps are widely used in packaging systems for adhesives, sealants, silicones, construction chemicals, and related products. These components may appear simple, but they play an essential role in product usability and storage stability. Reliable molds support the large-scale production needed by industries that depend on these packaging solutions.

Construction workers use sealant cartridges for bonding, waterproofing, and gap filling. Industrial users rely on glue bottles for precision dispensing. In all these cases, the plastic closures and internal components must be produced accurately so that the packaging performs as expected. A well-designed mold contributes directly to this reliability.

Conclusion

The Custom Injection Mould For Plastic Sealant Cartridge Plunger, 16 Cavity Glass Glue Bottle End Cap Mold represents a specialized and highly practical tooling solution for modern plastic part production. It combines precision engineering, multi-cavity efficiency, and application-specific design to support the manufacturing of functional components used in sealant and adhesive packaging. From mold structure and cooling design to material selection and quality control, every aspect of the tooling must be carefully considered to achieve stable, repeatable, and cost-effective production.

As industries continue to demand higher output, better consistency, and more reliable packaging solutions, custom injection molds like this will remain essential. Their ability to produce detailed, durable, and uniform plastic parts makes them a cornerstone of efficient industrial manufacturing.
